Full Size AR500 Caribou Target
Backordered products are made to order. Please allow an additional 4-6 weeks of processing time. See our Ready To Ship collection for available stock.

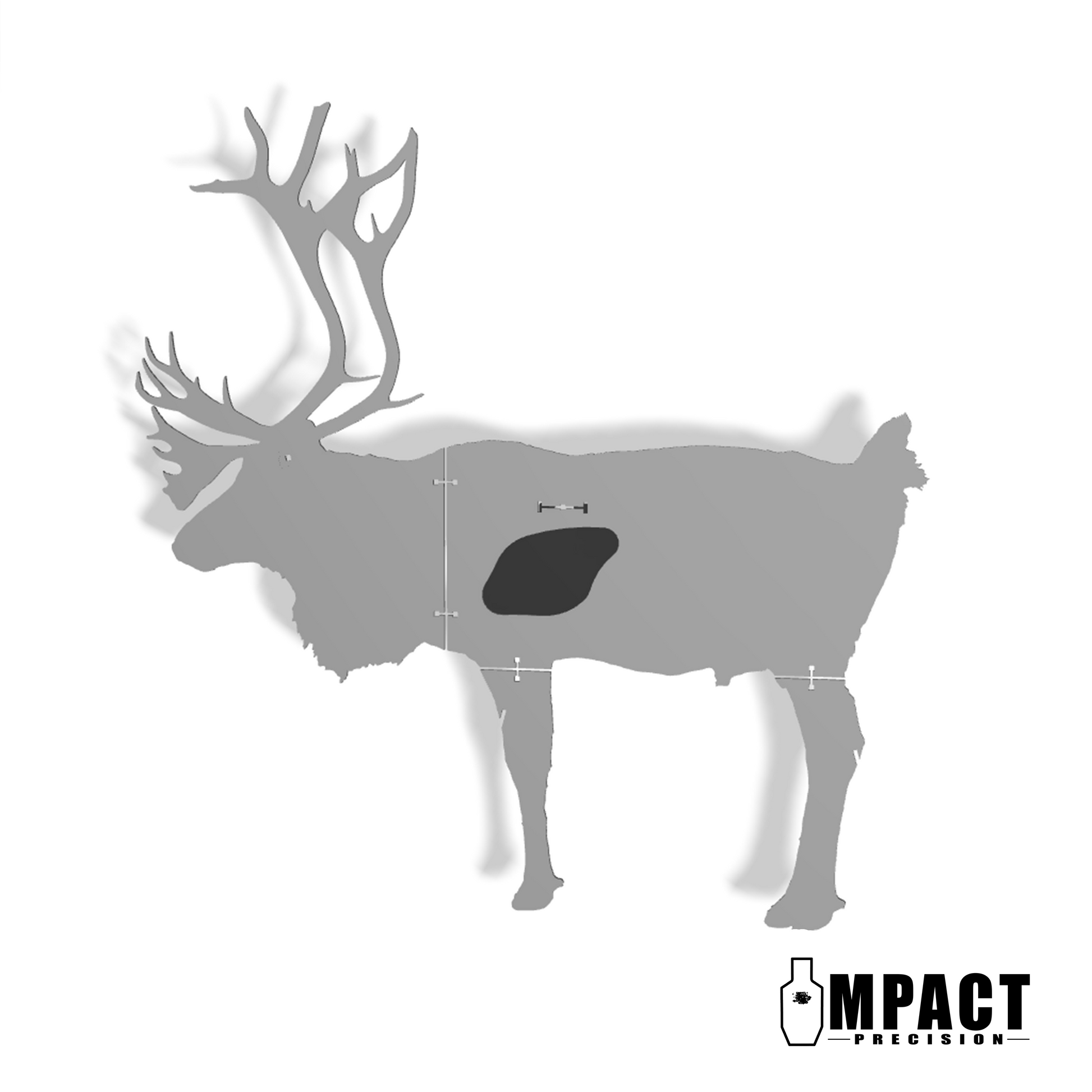

The Impact Precision Caribou steel target is CNC laser-cut from 3/8 inch AR500 steel in Central Texas. Its reactive vital plate mounts behind the silhouette for visible movement when struck.
Specifications and included parts
- Material: 3/8 inch AR500 steel.
- Overall target dimensions: 73.06 inches wide × 74.90 inches high. Dimensions follow the illustrated assembly guide and exclude separate supports.
- Includes the target body components, reactive vital plate, one swing mount and two vital swings.
- Assembly hardware: 6 × 1/2-13 × 2 inch Grade 8 carriage bolts and 6 matching lock nuts.
- Assembly tool: impact driver or ratchet with a 3/4 inch socket, or a matching wrench.
Mounting and setup
Pair with the compatible Mobile Target Base (sold separately) and customer-supplied support legs. The recommended mobile-base legs are four 30 inch lengths of 1 inch EMT conduit.
Assembly guide
Open the guide images in this product gallery for dimensions, the parts checklist, required tools and assembly steps. Guide pages are shown in order.
Dimensions & Weight
Shipping
We will work quickly to ship your order as soon as possible.
Once your order has shipped, you will receive an email with further information.
Delivery times vary depending on your location. We ship all non freight orders UPS Ground, Fedex Ground, or USPS Priority.
If total order weight exceeds 200lbs it will likely ship freight on a pallet with a lift gate available upon delivery included. Any additional services to the above will be at the buyers expense.
Caliber Rating & Recommended Distances
Our 3/8" AR500 steel targets are rifle-rated and designed for exceptional durability across a wide range of calibers. To minimize surface pitting and extend target life:
- .223/5.56x45mm: 100+ yards
- 6.5 Creedmoor & .308/7.62x51mm: 150+ yards
- Magnum rifle cartridges: 300+ yards
- .50 BMG: 500+ yards
All standard pistol calibers are safe at any distance. For magnum pistol rounds (e.g., .44 Mag, .357 Mag), use 25+ yards.
These distances are conservative guidelines for optimal condition. Real-world testing shows outstanding performance at closer distances: 5.56 FMJ at under 20 yards leaves only minor marks, while high-velocity magnums like a custom 300 RUM (245gr Berger at 3100 FPS) at 300 yards produce no pitting. We've rigorously tested dozens of cartridges with excellent results, which is why we exclusively offer 3/8" thickness – delivering proven protection without the added cost and weight of thicker steel.
